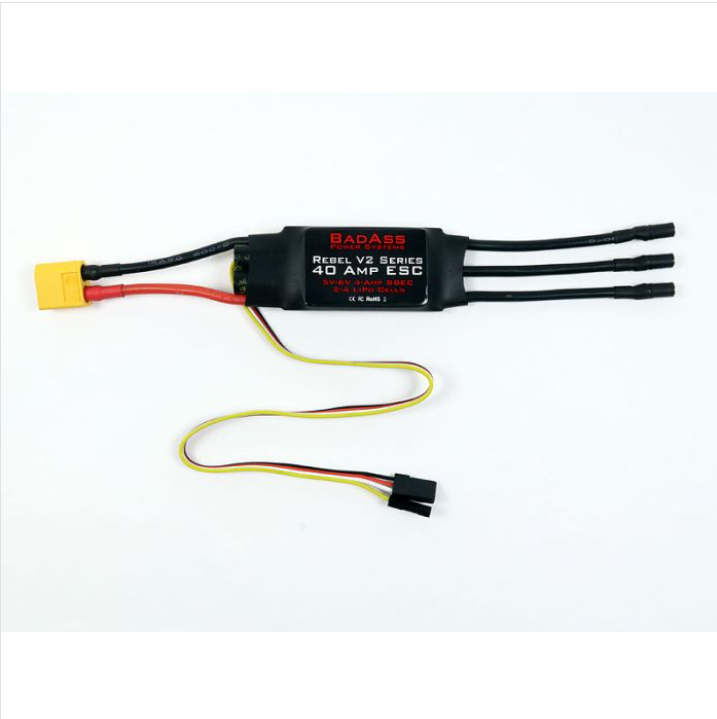

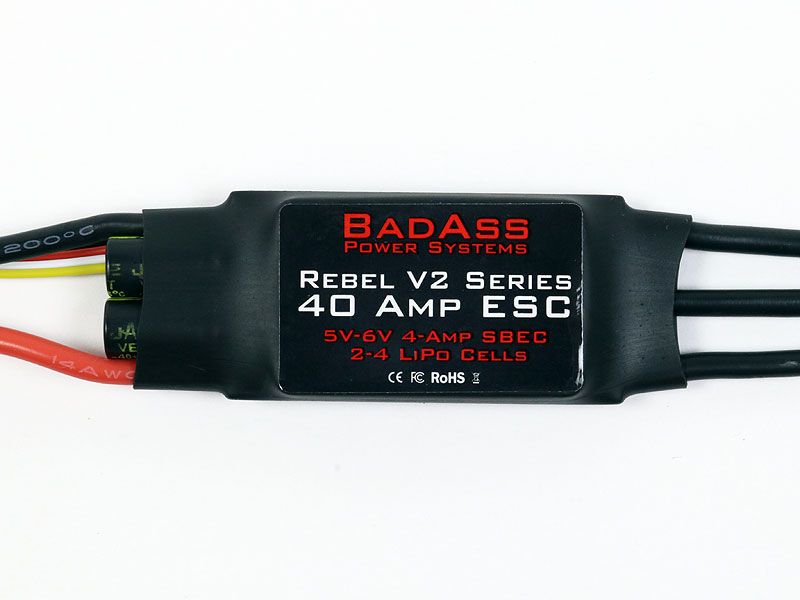

BadAss Rebel V2 Series Brushless ESC, 40A

Been repacked due to damaged box but is brand new and has never been turned on.

The BadAss Rebel V2 Series is a high-quality 40a speed controllers (ESCs) designed for RC airplanes, RC car, drones, and many more. They are built to be reliable, easy to use, and packed with modern features. Below are some of the spec and information about the esc that are important.

• Plug & Play: Most models come with connectors already installed, so you can use this esc right out of the box.
• On-the-Fly Reverse: You can reverse the motor direction while flying (if the throttle is below 50%). This is great for shortening your landing roll on "STOL" (Short Takeoff and Landing) planes.
• Power for Electronics: They include a built-in circuit (BEC) to power your receiver and servos, with adjustable voltage (5V or 6V) on most models.
• High Speed & Safety: They support high-speed motors (up to 42,000 RPM) and include thermal protection to prevent overheating.
• Lost Plane Finder: if the signal is lost for 2 seconds, the motor will beep to help you find your aircraft in tall grass or trees.

Programming Options

While they work great with factory settings (shown in bold below), you can customize this esc by using your transmitters sticks or an optional LCD Program Card:

• Reverse (SMR): OFF / ON (Requires a spare switch on your radio).
• Brake: OFF / Soft / Medium / Hard (Stops the prop from spinning when the throttle is at zero).
• Timing: Auto / Low / Mid / High (Fine-tunes motor efficiency).
• Rotation: Clockwise / Counter-Clockwise.
• Battery Cells: Auto Detect or manual 2S–6S.
• Low Voltage Protection: 3.0V / 3.2V / 3.4V / 3.6V (Prevents battery damage).
• Cutoff Type: Reduce Power / Shut Down (What happens when the battery gets too low).
• BEC Voltage: 5V / 6V (Powers your servos
